Sequoia Gantry Hoist System

Ideal for urgent or short-term hoisting solutions. Easily assembled with no tools required. Easily dismantled and is supplied with its own wheeled case for easy transportation. The side supports do not require a secure ceiling in order to be pressure fitted like other systems, they simply rest on the floor. Independently height adjustable feet allow transfers from one room to another, even at different levels. The track used in the Sequoia system has won a prestigious award for design innovation. Adjustable in both width and height to a maximum of 2.7 x 2.7m (105 x 105"). Ideal for use with Transportable II Hoist below.

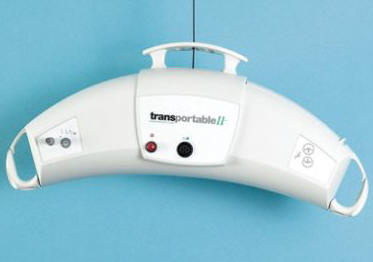

Transportable II Hoist

The Transportable II mobility hoist is suitable for use with the Sequoia Gantry above as well as other ceiling track systems. It can be detached from a ceiling track in one room and reattached to a ceiling track in another room.

Features
• A reliable lifting mechanism with smooth operation

• An integrated full-width carry bar
• Integral controls with up/down, emergency lowering and emergency stop functions
• Remote pneumatic handset control with up/down, emergency lowering and emergency stop functions
• Locking spring clips on carry bar, providing additional safety
• Carrying handle for transportation
• Removable rechargeable batteries that can be charged by means of an optional desk mounted charger unit (2 x 12v DC 2.0Ah supplied as battery pack)
• Approximately 45 transfers possible on fully charged batteries (80kg patient)
• Hoist can be used after 1 hour of charging, from point of low battery warning

Oxford Easytrack FS and Voyager Portable

The Voyager Portable & Easytrack FS combine to form a unique portable overhead lifting solution for the home and hospital. This combination of products has taken patient handling to the next dimension by providing a truly portable overhead lifting solution. Whether it's for homecare, emergency or temporary solution, the Voyager Portable & Easytrack FS with a 200kg lifting capacity is the answer.

Oxford Easytrack FS

The Easytrack FS is a lightweight, free standing overhead track system. Unlike standard overhead track systems, the Easytrack FS does not rely on support from the ceiling, removing any potential structural issues that may be encountered. It is easy to assemble, has lightweight components making transport and storage easy and features telescopic adjustment for ease of use. Height adjustable from 1830 to 2406mm (72 to 94¾"). Exterior width adjustable from 2210 to 3230mm (87 to 127¼"). Post weight 9.5kg. Rail weight 14.0kg. Footplate: Length 1075mm (42¼"); Width 150mm (6"); 5.5kg (each).

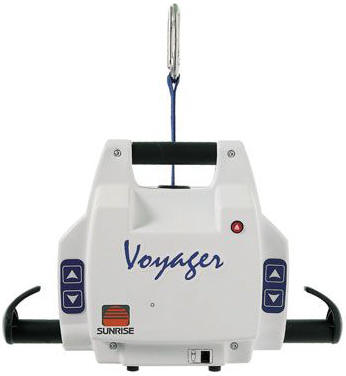

Oxford Voyager Portable

This portable hoist has a convenient carry handle making it easy to transfer so one unit can be used for several rooms. It features a patented ‘Quick Releaser', which means that the hoist can be moved from place to place faster saving valuable time. This system also helps to prevent back injury and strain because virtually no weight is lifted overhead. The unit's controls are easily accessible for both the user and carer. Dual controls - handset and hoist - increase safety and prevent product failure if handset is damaged. Weight 5.5kg.
